製品詳細
起源の場所: 中国
ブランド名: RION
証明: CE, FCC , ROHS
モデル番号: SDA118T/SDA128T
文書: SDA118T&SDA128T CURRENT OUT...ER.pdf
支払及び船積みの言葉
最小注文数量: 1
価格: $115/Pieces
パッケージの詳細: カートン梱包
受渡し時間: 5〜8営業日
支払条件: T/T
供給の能力: 1000個/月
サイズ: |
72.6×42×23mm |
電源: |
DC 9~36V |
防振: |
2000G |
作業温度: |
-40～+85℃ |
解決: |
0.01° |
重さ: |
180g |
サイズ: |
72.6×42×23mm |
電源: |
DC 9~36V |
防振: |
2000G |
作業温度: |
-40～+85℃ |
解決: |
0.01° |
重さ: |
180g |
SDA118T&SDA128T CURRENT OUTPUT INCLINOMETER.pdf

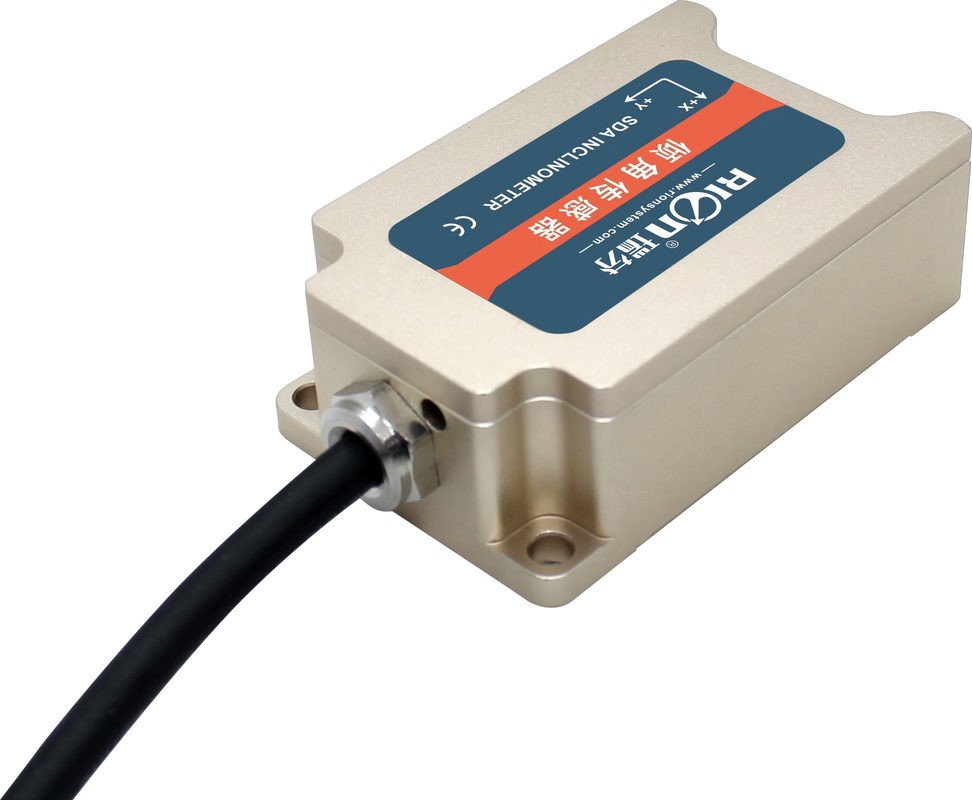

SDA118T/SDA128T is an industrial grade current output inclinometer with high seismic performance, ensuring accurate measurement of objects; Standard current output of 4-20mA, with dual axis tilt, capable of long-distance transmission up to 2000 meters. The output signal has strong anti-interference ability and is specifically applied to engineering machinery equipment working in harsh environments. The product is produced using a new MEMS sensing production process, which provides precise compensation and correction for temperature errors and nonlinear errors. The small range accuracy is as high as 0.05 °, with high accuracy, small size, high packaging technology, and excellent shock and vibration resistance. The product is equipped with anti RF and anti electromagnetic interference circuits, making it particularly suitable for underground non excavation machinery and other harsh industrial environments. In addition to having better technical parameters than ordinary products in the market, this product also adopts various measures such as industrial application level MCU, three proof PCB board, imported cable, and wide temperature shielded metal shell to improve its industrial level in terms of reliability and stability.
| SDA118/128T | CONDITION | PARAMETERS | UNIT | ||||
| Measure range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | |
| Measure axis | X Y | X Y | X Y | X Y | X Y | AXIS | |
| Zero output | 0° output | 12 | 12 | 12 | 12 | 12 | mA |
| Measure Resolution | 0.01 | 0.01 | 0.02 | 0.03 | 0.05 | ° | |
| Accuracy | @25℃ | 0.03 | 0.05 | 0.06 | 0.08 | 0.1 | ° |
| Long term stability | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | ° | |
| Zero Temp coefficient | -40~85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity temp coefficient | -40~85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | s | |
| Response Fre | 1~20 | 1~20 | 1~20 | 1~20 | 1~20 | Hz | |
| EMC | According to EN61000 and GBT17626 | ||||||
| MTBF | ≥98000hours/times | ||||||
| Insulation Resistance | ≥100 mΩ | ||||||
| Shockproof | 100g@11ms / 3Times/Axis(half sinusoid) | ||||||
| Anti-vibration | 10grms / 10~1000Hz | ||||||
| Protection glass | IP67 | ||||||
| Cables | Standard 1M length / wearproof / grease proofing / wide temperature / Shielded cables | ||||||
| Weight | ≤180g (excluding cables) | ||||||
Resolution: The sensor can detect and distinguish the smallest change value of measured within the measurement range.
Measure Accuracy: The combined deviation of the sensor's linearity, repeatability, hysteresis, zero offset, and horizontal axis deviation on normal temperature conditions.
Long-term stability: The deviation between the maximum and minimum values of the sensor after a long times work on normal temperature conditions.
Response Time: The takes time for the sensor output reach to the standard value when sensor have changes angle.
| Parameters | Conditions | Min | Standard | Max | Unit |
| Supply voltage | Standard | 9 | 12 / 24 | 36 | V |
| Working current | 50 | mA | |||
| Output load | Resistance | 400 | 1000 | Ω | |
| Operating temp. | -40 | +85 | ℃ | ||
| storage tempe. | -55 | +125 | ℃ |
