DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement

製品詳細

起源の場所: 中国

ブランド名: RION

証明: CE, FCC , ROHS

モデル番号: DMI815/825

文書: DMI815 DMI825 DIGITAL DISPL...ER.pdf

支払及び船積みの言葉

最小注文数量: 1個

価格: $438.00/Pieces

パッケージの詳細: カートン

受渡し時間: 5〜8営業日

支払条件: T/T

供給の能力: 3000/month

最もよい価格を得なさい
今接触
指定
ハイライト:

Industrial Digital Inclinometer

,

DMI815/825 Digital Inclinometer

,

High Precision Digital Inclinometer

測定精度:
< 0.005 °
角度の決断:
0.001の°
測定範囲:
±30°
液晶画面:
64色のトゥルーカラー発光ディスプレイ
防水グレード:
IP54
サイズ:
L117*W75*H27mm
測定精度:
< 0.005 °
角度の決断:
0.001の°
測定範囲:
±30°
液晶画面:
64色のトゥルーカラー発光ディスプレイ
防水グレード:
IP54
サイズ:
L117*W75*H27mm
記述

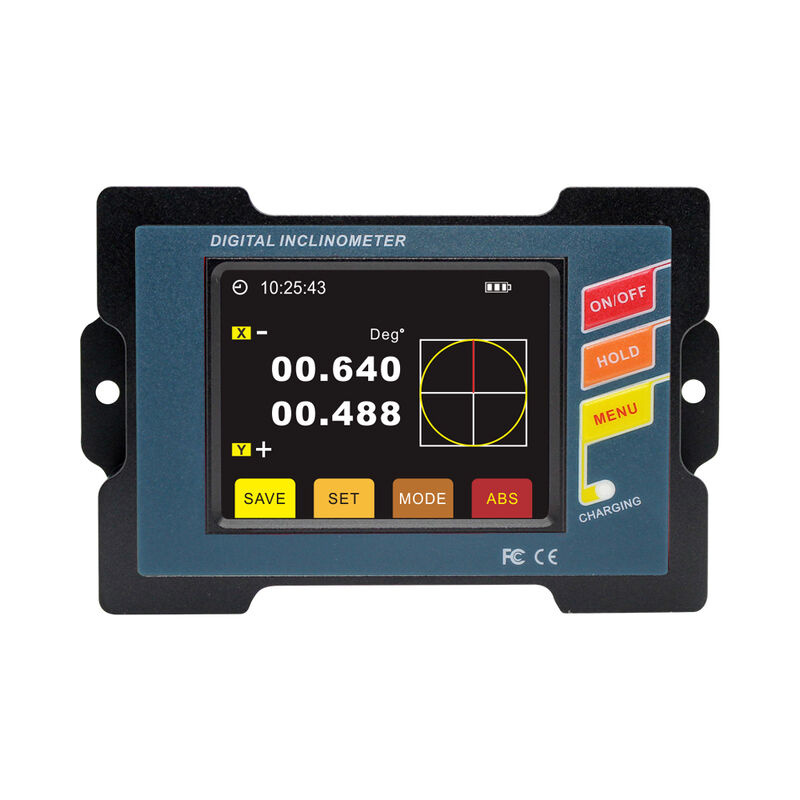

DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement

GENERAL DESCRIPTION

DMI815/825 is a digital display inclinometer for angle control and measurement in various industrial fields. The core of this product is to adopt the micro-mechanical control principle and dual-core measurement unit. In the measurement process, the Y-axis can be used to compensate the X-axis, and then the interleaving and temperature compensation model algorithm can be used to give full play tothe operational advantages of the micro-mechanical electronic principle. And the long-term stability and repeatability of the instrument measurement are ensured. ± 30 ° measurement, resolution of 0.001 °, accuracy of < 0.005 ° full range, fast response, stable data, easy installation and use, this product has data storage function, three measurement modes (angle, degree, minute and second, mm/m), powerful expansibility, convenient practical application, industrial reliability, high cost performance, It has certain competitive advantages in the international market!

FEATURES

Measured accuracy: < 0.005 °
Angle resolution: 0.001 °
Filter frequency optional
Measurement range: ± 30°
Absolute/relative measurement can be switched
With data storage function
Automatic angle interleaving compensation function
Fixed installation can be measured
Working temperature -10~ + 70
Angle/length double unit switching
Night vision four-color screen
Customers can calibrate the zero point by themselves
Alarm angle can be set
3 measurement modes (angle, degree, minute and second, mm/m)

APPLICATION

Building construction
Production fixture
Vehicle four-wheel detection
Mechanical installation
Pipeline installation
Industrial platform
PTZ angle detection
Turntable detection
Medical instrument
Road slope

DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement 0
DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement 1

DMI815/825 High Precision Digital Inclinometer for Industrial Angle Measurement 2
