製品詳細
起源の場所: 広東省、中国
ブランド名: RION
証明: CE
モデル番号: DMI420/410
支払及び船積みの言葉
最小注文数量: 1
価格: $217.00/Pieces >=1 Pieces
パッケージの詳細: 内部にスポンジが入った各木箱に入ったデジタル傾斜計、20個/ctn
受渡し時間: 5～10営業日
支払条件: T/T、ペイパル
供給の能力: 倉庫内の週あたり 1000 個/個のデジタル傾斜計
傾斜計の精度: |
0.05° |
Pro 360 デジタルレベル: |
分数で読み取れる |
測定範囲: |
360度 |
解決：: |
0.01° |
使用温度: |
-20°~+65°C |
保護クラス: |
IP54 |
高い抗衝撃性: |
100G |
°/mmの二重単位のスイッチ機能: |
夜間視界のfours色スクリーン |
傾斜計の精度: |
0.05° |
Pro 360 デジタルレベル: |
分数で読み取れる |
測定範囲: |
360度 |
解決：: |
0.01° |
使用温度: |
-20°~+65°C |
保護クラス: |
IP54 |
高い抗衝撃性: |
100G |
°/mmの二重単位のスイッチ機能: |
夜間視界のfours色スクリーン |

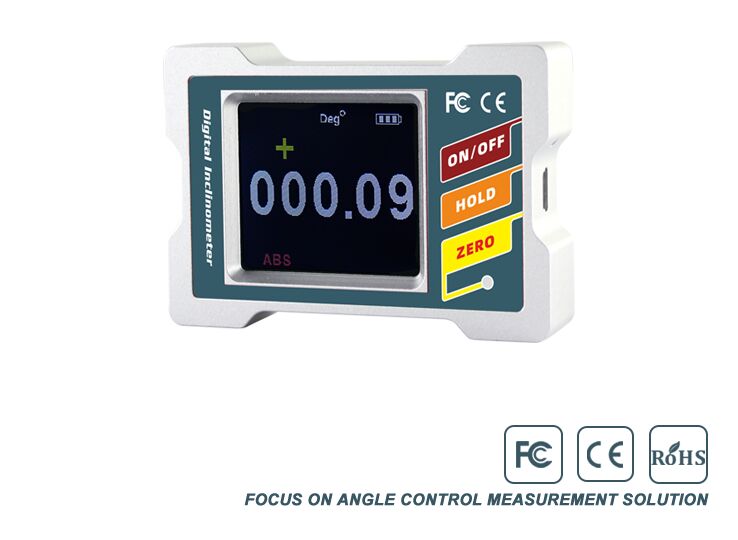

DMI410 Digital Display Inclinometer 2 Axis High Precision LCD Rechargeable Magnetic Adsorption
DMI410 DMI420 DIGITAL DISPLAY INCLINOMETER.pdf
The core of this productis the use of micro-mechanical con-trol principle, dual-core measurement unit, Y-axis can be usedto compensate the X-axis during the measurement process, patented interleaving and temperature compen-sation model algorithms are used to give play to the absolutecalculationof the micro-mechanicalelectronic principle Advan-tages to ensure the long-term stability and repeatability of theinstrument measurement. The special design of the productadopts strong magnetic adsorption installation on the side andbottom, and both sides of the reference can be measured andused normally, which brings great convenience to customers.
Features:
Application :
| PARAMETERS | DMI410 DMI420 | |
| Measure axis | Single axis | Dual axis |
| Angle measure range | ±180 ° | ±90 ° |
| Angle measure accuracy | 0.05 °(full range) | 0.05 °(full range) |
| Angle measure resolution | 0.01° | 0.01° |
| mm/m measure accuracy |
0.9mm/m(full range)
|
0.9mm/m(full range) |
| mm/m measure resolution |
0.1mm/m
|
0.1mm/m |
| LCD visible area size | L40*W32mm | |
| Working temperature | -10℃～ +70℃ | |
| Working humidity | 85℃ | |
| Power supply | 3.7V Charging Lithium battery | |
| Ideal charging time | 3h | |
| Battery continuous working time | 8h(±0.5) | |
| Data output signal | Standard 5Pin USB connector | |
| Anti-vibration | 10g@11ms,3 Axial Direction (Half Sinusoid) | |
| Impact resistance | 10grms,10～100Hz | |
| Weight |
≤140g
|
|
| Waterproof level | IP54 | |
| Material | Metal aluminum | |
| Size | L83*W53*H19.2mm | |
