製品詳細
Place of Origin: China
ブランド名: RION
証明: CE, FCC, ROHS
Model Number: DDM365-232
支払及び船積みの言葉
Minimum Order Quantity: 1
価格: $129.00
Packaging Details: 21*21*7cm
受渡し時間: 5〜10日
支払条件: T/T,Paypal メールで受け取る
Supply Ability: 10000 pcs /month
Precision: |
can be 0.002deg |
Angle Resolution: |
0.1° |
Ingress Protection: |
IP67 |
Customized Support: |
OEM |
生産率: |
5Hz、15Hz、35Hz、50Hzを設定できます |
Working Temp: |
-40 to +85℃ |
測定の軸線: |
Ｘ軸/Ｙ軸/Z軸 |
Power Supply: |
DC5V |
Precision: |
can be 0.002deg |
Angle Resolution: |
0.1° |
Ingress Protection: |
IP67 |
Customized Support: |
OEM |
生産率: |
5Hz、15Hz、35Hz、50Hzを設定できます |
Working Temp: |
-40 to +85℃ |
測定の軸線: |
Ｘ軸/Ｙ軸/Z軸 |
Power Supply: |
DC5V |

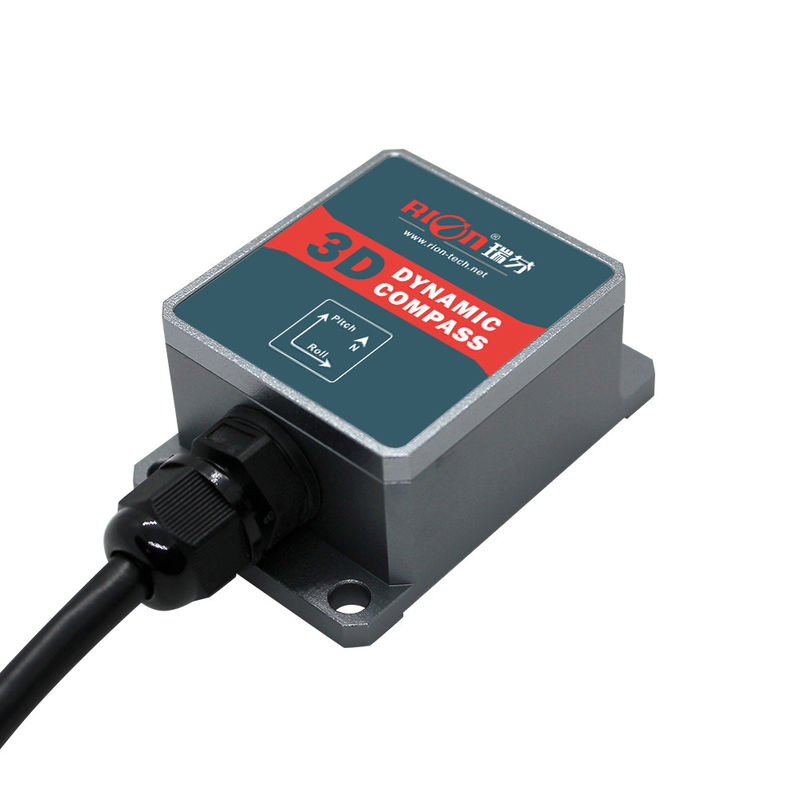

12 axis 3D Digital Electroninc Compass Sensor For Antenna Servo Control
▶ Product Introduction
DDM365B is a three-dimensional dynamic electronic compass with a 12-axis inertial measurement unit, including a three-axis attitude angle, a three-axis acceleration meter, a three-axis gyroscope, and a three-axis magnetic induction technology. Using the high dynamic angle characteristics of the gyroscope and the high stability of the attitude characteristics of the accelerometer, the pitch angle and roll angle that follow the complex attitude change are obtained by the dynamic inertial navigation algorithm. The geomagnetic azimuth adopts hard magnetic and soft magnetic calibration algorithms, so that the compass can also eliminate the influence of the magnetic field through the calibration algorithm in the environment with magnetic field interference. Through the real-time heading calculation of the central processing unit, and the dynmic heading compensation of the magnetic azimuth in a wide range by using the dynamic pitch angle and roll angle, the compass can provide high-precision heading data even at the tilt angle of up to ±85°. The electronic compass integrates a high DSP computing processor, and the output mode is diversified, among which the standard interface includes RS232/RS485/TTL and other interfaces, and can accept the customization of other communication interfaces.
DDM365B small size, low power consumption, can be applied to many high seismic resistance, extremely harsh environments such as marine ships, antenna star search, etc., and is more suitable for today's various high-precision measurement integrated control systems.
▶ Key features:
★ Heading accuracy: 1°
★ Inclination measurement range: pitch ±85°, roll angle±180°
★ Inclination resolution: 0.1°
★ Inclination static accuracy: 0.2°, dynamic accuracy 0.5°
★ Wide temperature range: -40°C~ 85°C
★ Size: L55×W37×H24mm
★ Standard RS232/output interface with hard magnetic, soft magnetic and inclination compensation
★ DC 5V power supply
★ IP67 waterproof rating
▶ Application
★ Nautical navigation mapping
★ GPS integrated navigation
★ antenna servo control
★ Infrared imager
★ laser rangefinder
★ map replotter
★ ROV Navigation
★ Oceanographic Gauge
★ Special Occasion Robot
|
|
||
|
Compass heading parameters |
Heading accuracy |
1° |
|
Resolution |
0.1° |
|
|
Pitch measurement range |
±90° |
|
|
Roll measurement range |
±180° |
|
|
Tilt inclination accuracy |
Static 0.2° |
|
|
Dynamic 0.5° |
||
|
Resolution |
0.1° |
|
|
Inclination angle compensation |
Roll ±180° |
|
|
Pitch ＜85° |
||
|
Triaxial magnetic field |
Measurement range |
±800uT |
|
Calibration |
Hard iron calibration |
Yes |
|
Soft iron calibration |
Yes |
|
|
Magnetic interference calibration method |
Rotate one turn horizontally ( 2D calibration ) |
|
|
Interface characteristics |
Start delay |
<50ms |
|
Output rate |
5~100Hz(can be set ) |
|
|
Baud rate |
4800 to 115200baud |
|
|
Output format |
Binary high-performance protocol |
|
|
Power supply |
Voltage |
(Default )DC +5V |
|
(customized)DC 9～36V |
||
|
Current (MAX) |
45mA |
|
|
Ideal mode |
35mA |
|
|
Sleep mode |
TBD |
|
|
Environment |
Working temperature |
-40℃～+85℃ |
|
Store temperature |
-40℃～+85℃ |
|
|
Vibration resistance |
2500g |
|
|
EMC |
依照EN61000和GBT17626 |
|
|
MTBF |
≥98000 hours/time |
|
|
Insulation resistance |
≥100megohm |
|
|
Impact resistance |
100g@11ms,3 Axial Direction (Half Sinusoid) |
|
|
Anti-vibration |
10grms,10～1000Hz |
|
|
Dimension |
L55×W37×H24mm |
|
|
Weight |
≤135g( including1m cable ) |
|
